Product Features: 产品特征：

With the increasingpopularity of smart phones dominated by Apple and Samsung, the application ofthe key component---LCD touch screen is being increased larger and larger.However, some defect products, like air bubbles, black spots, white spots, misplacement, will inevitably be produced during the LCD touch screen OCA/LOCAfull lamination process. But the cost of LCD touch screens is higher, whichmakes the related enterprises have the requirements of reworking LCD touchscreens.

随着智能手机的日益普及，苹果和三星占据主导地位，关键组件--LCD触摸屏的应用越来越大。然而，在LCD触摸屏OCA/LOCA全层压过程中不可避免地产生一些缺陷产品，如气泡、黑点、白点、错位等。但LCD触摸屏的成本较高，使相关企业有返修LCD触摸屏的要求。

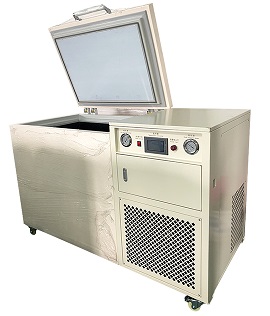

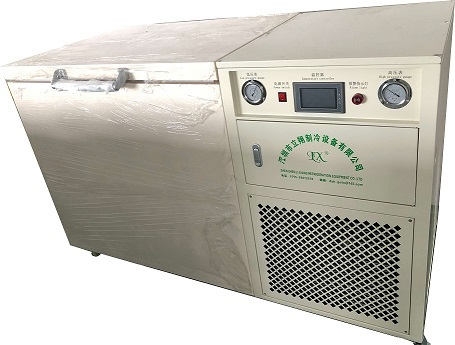

LXBX series -150°C ultralow temperature LCD frozen separator freezer can cool down the touch screen bymeans of cold and heat exchanging through cold air in the chamber, which makethe OCA glue and optical glue loses viscosity at low temperature and separateout the LCD from the LCD screen module (that is the LCD screen is to beseparated from the TP or cover plate), or peel off TP or cover plate from theLCD screen module, recycle or renovate LCD or LCD panel.

LXBX系列-150°c超低温液晶显示冷冻分离器可通过室内冷空气冷热冷却触摸屏，使OCA胶和光学胶在低温下失去粘度，并将LCD与LCD屏模块分离(即LCD屏幕与Tp或盖板分离)。或从液晶屏模块中剥离tp或盖板，回收或翻新LCD或LCD面板。

LXBX series -150°C ultralow temperature LCD frozen separator freezer has a variety of volumes from 50Lto 650L for users to choose from.

LXBX系列-150°c超低温液晶冷冻分离器，可供用户选择，体积从50升到650升不等。

LXBX series -150°Cultra low temperature LCD frozen separator freezer has a variety oftemperatures from -145℃ to -150℃, for users to choose from.

LXBX系列-150°c超低温液晶显示冷冻分离器有多种温度，从-145℃到-150℃，供用户选择。

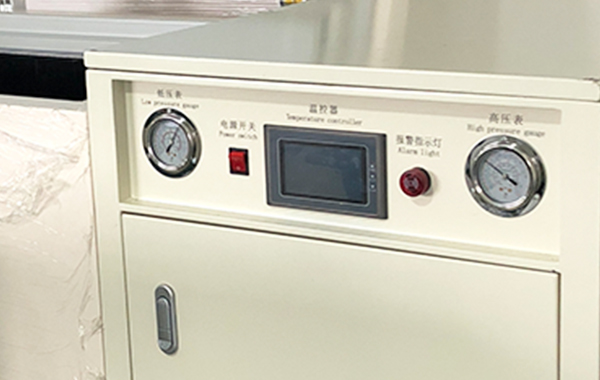

Temperature controlsystem: Microcomputer intelligent temperature controller, temperature digitalsetting, digital display. The temperature controller has password lockingfunction in case of mistuning by the irrelevant person.

温度控制系统：微机智能温度控制器，温度数字设定，数字显示。温度控制器具有密码锁定功能，以防被无关人员误用。

Heat insulating material:160mm thickness high pressure and high density foamed Polyamine Ester,effectively reduce the loss of cold capacity, multi-door seal off the coldcapacity, the whole chamber has good temperature preservation.

保温材料：160mm厚、高密度发泡聚胺酯，可有效降低冷量损失、多门封冷能力，整个腔体具有良好的保温性能。

The inner liner inside thecase is made of corrosion-proof embossed Aluminum plate or stainless steelplate. The surfaces of the plates are very smooth and clean. It has goodthermal conductivity and corrosion resistance.

箱内内衬采用耐腐蚀压花铝板或不锈钢板制成。这些盘子的表面非常光滑和干净。具有良好的导热性能和耐腐蚀性能。

Imported advancedrefrigeration compressor and accessories, can run continuously for 24hours,more stable refrigeration performance.

进口先进的制冷压缩机及附件，可连续运行24小时，制冷性能更稳定。

Safety electricityprotection system equipped with ground wire, over heat protection, short circuitprotection, over current protection, high & low voltage protection, reversephase lack protection etc. Greatly ensure users’ safety.

带地线的安全电气保护系统，过热保护，短圈保护，过流保护，高电流保护。

Unique non-fluorine-freemixed refrigerant, energy saving and environmental protection.

 独特的无氟混合制冷剂，节能环保.

OperationInstructions: 操作说明

1.) Beforeusing, it will take the machine around 30～40 minutes tocool to the set working temperature.

1.) 使用前，要花大约30~40分钟左右让机器冷却至设定工作温度。

2.) Place theLCD screen on the frozen plate.

2.) 将液晶屏放置在冷冻板上。

3.) Freezingtime from 30 seconds to 1 minute depends on different LCD screens.

3.) 冻结时间从30秒到1分钟取决于不同的液晶屏幕。

4.) Take outLCD screen and separate it.

4.) 取出液晶屏并将其分开。

5.) Below isthe URL of youtube video link for your reference:

5.) 以下是优酷视频链接的URL，供您参考：

http://i.youku.com/i/UMzYwNzc0OTg4NA==?spm=a2hzp.8244740.0.0

Tips: 提示

1.) Forserious crushed glass, please stick a tape on glass for safety and good formachine

1.) 如有严重碎玻璃，请在玻璃上贴上胶带，以确保安全及对机器有利。

2.) Pleasemake sure the operator wears gloves in case of danger.

2.)为防止发生危险，请确保操作人员戴手套。

3.) It is mucheasier to separate out the bracket and other components after freezingprocessing. Please pay attention to the back-light water inlet.

3.) 在冷冻处理后，更容易分离出支架和其它部件。请注意背光入水口。

4.) Afterseparating the LCD screen, pay attention to the water treatment and temperaturerecovery.

4.) 液晶屏分离后，注意水的处理和温度的回收。

5.) Whenseparating the curved screen, the separation risk caused by the temperature differencebetween 2 sides of the curved surface screen. Please pay more attention to thispoint.

5.) 曲线筛分离时，由于曲面屏两侧温差引起的分离风险。请注意这一点。

6.) After LCDseparation, please put the glue side upward to avoid sticking on the articlesurface after the temperature return to the normal.

6.) 液晶显示器分离后，请将胶水侧向上放置，以避免杂物粘在胶水表面上，并且让屏温度恢复正常。

Product Parameters:

本产品还可用于冷缩装配领域

冷缩装配箱/工件冷处理/铜套冷缩装配箱/深冷装配箱/模具冷缩装配/低温装配/轴承冷缩装配
