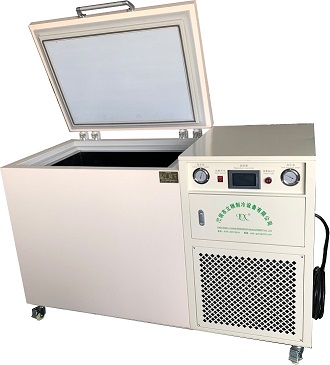

In order to greatly improve the LCD separating efficiency and freeze more LCD modules at the same time, our company launched a series of large volume ultra low temperature frozen separator freezers to the market. The ultra low temperature frozen separator freezers we developed are now being widely used in the LCD screen repair, reworking,refurbishment,recycling and other relevant industries.

为了大大提高液晶显示器的分离效率，同时冻结更多的液晶模块，我公司推出了一系列大容量超低温冷冻分离器进入市场。我们开发的超低温冷冻分离器正在广泛应用于液晶显示屏的维修、返工、翻新、回收等相关行业。

Compared with the ultra low temperature separator machine we developed, the ultra low temperature separator freezers have many advantages,especially in the LCD freezing capacity, freezing quantity, freezing efficiency and other aspects.

与我们研制的超低温分离机相比，超低温分离器具有许多优点，特别是在液晶屏的冻结能力、冻结量、冷冻效率等方面。

The lowest temperature of the machine can reach up to -150℃ without using liquid Nitrogen as refrigerant. It can easily separate out glass,TP, back light, OCA, LOCA, bracket from damaged LCD module.

机器的最低温度可达-150℃，而不用液氮作为制冷剂。它可以很容易地将玻璃、tp、背光、oca、loca、托架从损坏的液晶模块中分离出来。

No need to change the polarizer film. No components damage during the LCD module separating process. It is really a good helper for the LCD separation industry.

不需要更换偏光片。在液晶模块分离过程中没有元件损坏。它确实是液晶显示器分离行业的一个好帮手。

1.)Ease of operation, one-button start, high precision intelligent temperature control system, rapidly reaches to the preset temperature.

1.) 操作方便，单键启动，高精度智能温度控制系统，快速达到预定温度。

2.)Imported advanced refrigeration compressor and accessories, can run continuously for 24 hours, more stable refrigeration performance.

2.) 进口先进的制冷压缩机及附件，可连续运行24小时，制冷性能更稳定。

3.)Equipped with double sealing treatment top opening door and super thick thermal insulation layer box body, excellent thermal insulation performance,effectively reduce the loss of cooling capacity and greatly ensure the working temperature, energy saving, easy to operate.

3.) 配有双封处理顶开门和超大厚保温层箱体，具有优异的保温性能，有效地减少了冷却能力的损失，大大保证了工作温度、节能、操作方便。

4.)LXBX series large volume ultra low temperature separator freezer can be used as long as it connects the power supply. It doesn’t need other peripheral devices,no breakable parts and consumables, safe and reliable, low cost.

4.) LXBX系列大容量超低温分离器，只要连接电源即可使用。它不需要其他外围设备，没有易碎品和消耗品，安全可靠，成本低。

5.)LXBX series large volume ultra low temperature separator freezers have a variety of temperature from -145℃ to -150℃ and a variety of volumes from 50L to 650L for users to choose from.

5.) LXBX系列大容量超低温分离器冷冻机具有多种温度，从-145℃到-150℃，各种体积从50升到650升供用户选择。

 6.)Temperature control system: Microcomputer intelligent temperature controller,temperature digital setting, digital display. The temperature controller has password locking function in case of mistuning by the irrelevant person.

6.) 温度控制系统：微机智能温度控制器，温度数字设定，数字显示。温度控制器具有密码锁定功能，以防被无关人员误用。

7.)Heat dissipation mode: air cooling, large wind volume, strong heat dissipation fan, obvious condensing effect.

7.) 散热方式：风冷，风量大，散热强，冷凝效果明显。

8.)Safety measures: grounding protection, overheat protection, short circuit protection, over-current protection, high and low voltage protection, over temperature alarm.

8.) 安全措施：接地保护、过热保护、短路保护、过流保护、高、低压保护、过温报警.

9.)Power supply: 220V（380V）± 10%, 50HZ ± 5%.

9.) 电源：220V(380 V)±10%，50 hz±5%。

10.)Refrigeration system: Danfoss, ALCO and other international famous refrigeration accessories.

10.) 制冷系统：丹佛斯、铝业等国际知名制冷配件。

 11.)Unique non-fluorine-free mixed refrigerant, energy saving and environmental protection.

11.) 独特的无氟混合制冷剂，节能环保.

 12.)Inner tank material: stainless steel.

12.) 内胆材料：不锈钢。

Operation Instructions:

操作说明：

1.) Before using, it will take the machine around 30～40 minutes to cool to the set working temperature.

1.) 在使用前，机器大约需要30~40分钟才能冷却到设定的工作温度。

2.) Place the LCD screen on the freezing plate.

2.) 把液晶屏放在冷冻板上。

3.) Freezing time from 30 seconds to 1 minute depends on different LCD screens.

3.) 冷冻时间从30秒到1分钟取决于不同类型的液晶屏幕。

4.) Take out LCD screen and separate it.

4.) 取出液晶屏并将其分离开。

5.) Below is the URL of youtube video link for your reference:

5.) 以下是优酷视频链接的URL，供您参考：

http://i.youku.com/i/UMzYwNzc0OTg4NA==?spm=a2hzp.8244740.0.0

Tips: 提示

1. For serious crushed glass, please stick a tape on glass for safety and good for machine.

对于严重的碎玻璃，请用胶带贴在玻璃上，以保证安全，对机器也有好处。

2. Please make sure the operator wears glove sin case of danger.

请确保操作员戴上手套，以防止危险，

3. It is much easier to separate out the bracket and other components after freezing processing. Please pay attention to the back-light water inlet.

经过冷冻处理后，分离支架和其他部件要容易得多。请注意背光水口。

4. After separating the LCD screen, pay attention to the water treatment and temperature recovery.

液晶屏分离后，注意水的处理和温度的回收。

5. When separating the curved screen, the separation risk caused by the temperature difference between 2 sides of the curved surface LCD screen. Please pay more attention to this point.

分离曲面屏时，曲面LCD屏幕两侧温差引起的分离风险，请注意到这一点。

6. After LCD separation, please put the glue side upward to avoid sticking on the article surface after the temperature return to the normal.

液晶屏分离后，请将屏的胶水侧向上放置，以避免杂物粘在屏表面后，并让屏的表面温度恢复正常。

Product Parameters

本产品还可用于冷缩装配领域

冷缩装配箱/工件冷处理/铜套冷缩装配箱/深冷装配箱/模具冷缩装配/低温装配/轴承冷缩装配
